§01 / Pressure
The number that matters is the one it holds.
Continuous pressure is sustained working pressure — what the jet carries through a full shift, not a momentary peak. We publish both, side by side.
§02 / Inside
Servo speed follows the workload — no pressure-holding through pauses and rapids.
A servo motor under closed-loop EtherCAT control drives the intensifier's hydraulic pump, building pressure on demand. Tested 30–50% lower energy use at equal cutting power, lower oil temperature, typically under 70 dB, and longer seal life.
UHP cylinder × 2
Hydraulic cylinder
Cylinder end cap × 2
End nut × 2
§03 / Specifications

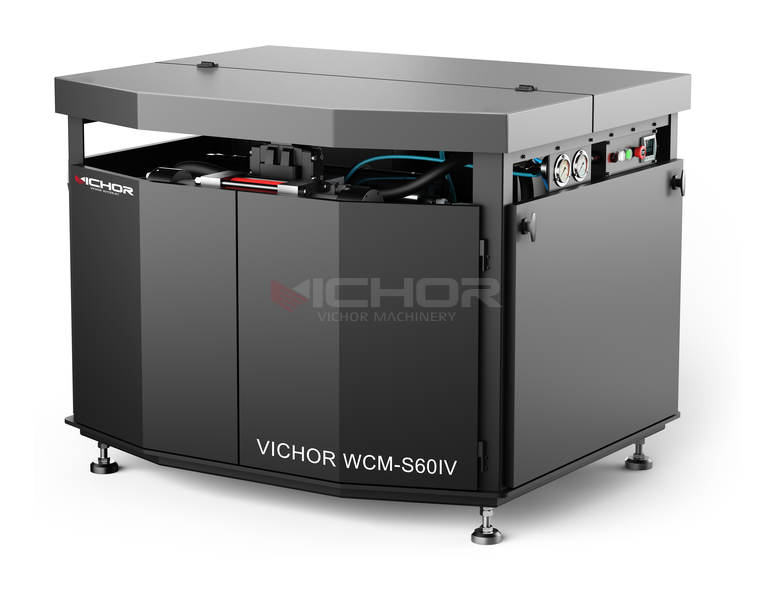

WCM-S60IV, in full.
| Max pressure | 62,000 psi · 430 MPa |
|---|---|
| Continuous pressure | 55,000–58,000 psi · 380–400 MPa |
| Rated power | 37 kW |
| Key advantage | Tested 30–50% lower energy use at equal power |
| Intensifier core | US intensifier core components · 5-year warranty |
| Servo drive & closed-loop control | Weihong |
| Hydraulics | Yuken |
| Machine warranty | 2 years · 24 months or 4,000 hours · UHP consumables excluded |
| Design life | 15-year design life |
* Power ratings are nameplate maximums; servo models draw less at typical duty.
§04 / Pump family
Four pumps, 430 to 600 MPa.
4TH GEN · BEST SELLER
WCM-P60IV
30% increase in cutting efficiency vs WCM-P60III
380–400 MPa continuous
37 kW
4TH GEN · STANDBY REDUNDANCY
WCM-P60IVB
Standby intensifier — no maintenance downtime
380–400 MPa continuous
37 kW
4TH GEN SERVO · MOST EFFICIENT
WCM-S60IV
Tested 30–50% lower energy use at equal power
380–400 MPa continuous
37 kW
FLAGSHIP
WCM-P90III
Highest-pressure tier — recommended for carbon steel over 150 mm
540–560 MPa continuous
55 kW
Quote
Tell us your material, sheet size and thickness — we will spec the machine.
Send a drawing and a material spec. We will come back with a machine configuration, a cutting time and a price. Reply within one business day.
