T-Series · Tilting Table · The slab-handler

Made for large, fragile slabs.

REQUEST A QUOTE →SIZES

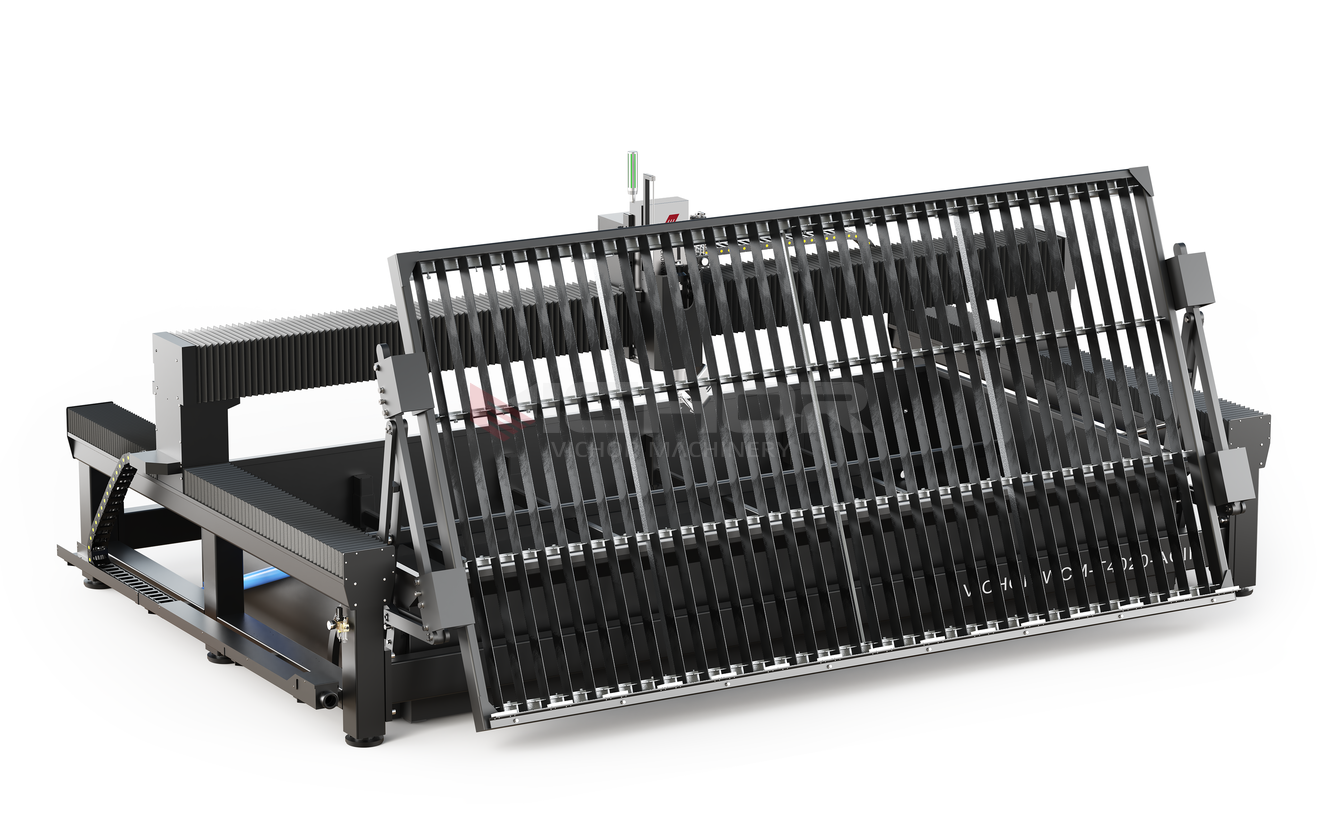

table-t4020WCM-T4020 · REPRESENTATIVE MODEL FOR THE SERIES
Standard sizesT3020 · T4020
Cutting accuracy±0.1 mm
Tilt capacity1.2 t

§01 / Structure

Tilt, load, cut.

A tilting slat bed under a gantry. The bed lifts to meet the slab for forklift loading — no overhead crane. 1.2-tonne tilting capacity.

§02 / Motion

One motion platform across all four tables.

Yaskawa AC servo, THK linear guides and HIWIN ball screws on every table family. The choice between tables is about the work on the table, not the control.

§03 / Specifications

All T-Series models.

StructureTilting slat bed, gantry
Command resolution0.01 mm
DriveAC servo
Cutting accuracy±0.1 mm
Servo systemYaskawa
Tilting table load capacity1.2 t
Linear guideTHK
Load-inForklift
Ball screwHIWIN
MaterialsStone · glass
Z-axis travel150 mm std · 250 / 300 mm optional
Design life15-year design life

§04 / Sizes

Two standard sizes.

WCM-T30203000 × 2000 mm
WCM-T40204000 × 2000 mm

Final specifications, options and dimensions confirmed per order.

§05 / Other tables

Pick the table for the work.

table-c2015

C-Series

Compact, and open on three sides.

Single-side cantilever, open on three sides. Sizes to 3 × 1.5 m.

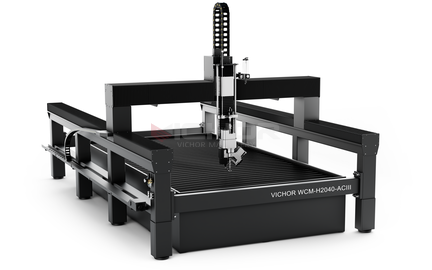

table-h2040

H-Series

Lift the bridge above the work.

G-Series gantry, raised and reinforced. Z-axis travel 1,000 mm+, table load 900 kg/m² or higher.

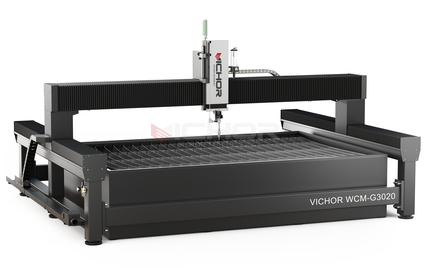

table-g3020

G-Series

Most jobs start here.
