H-Series · High-Frame · The heavy-cutter
Lift the bridge above the work.

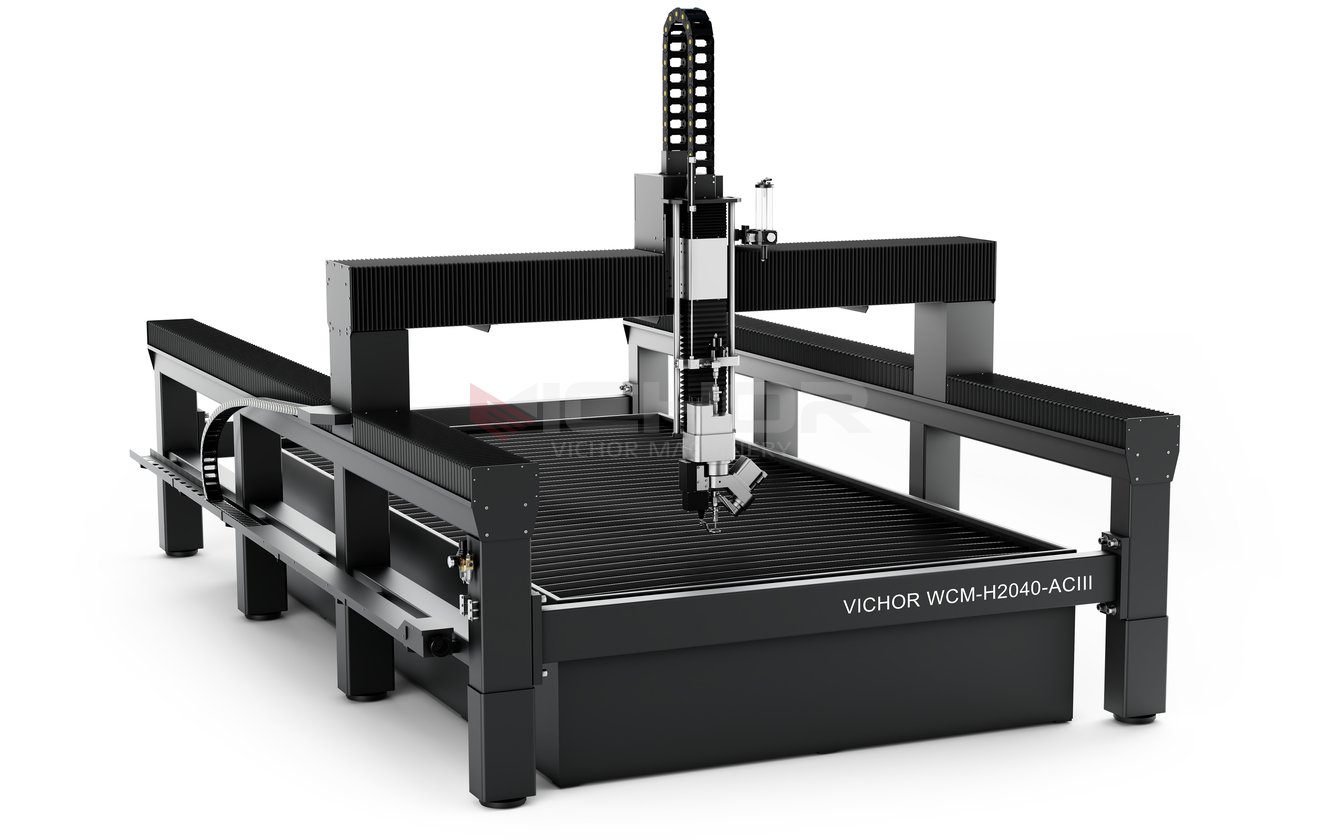

WCM-H2040 · REPRESENTATIVE MODEL FOR THE SERIESStandard sizesto 5 × 20 m
Cutting accuracy±0.1 mm
X/Y max speed13,000 mm/min
Table load900 kg/m² · higher to order
§01 / Structure
Same gantry, more clearance.
Built on the G-Series gantry, raised and reinforced — same control, pumps and cutting heads. Z-axis travel 300 mm standard, 1,000 mm+ to order.
§02 / Motion
One motion platform across all four tables.
Yaskawa AC servo, THK linear guides and HIWIN ball screws on every table family. The choice between tables is about the work on the table, not the control.
§03 / Specifications
All H-Series models.
| Structure | High-frame gantry, dual-side drive |
|---|---|
| Command resolution | 0.01 mm |
| Drive | AC servo |
| Cutting accuracy | ±0.1 mm |
| Servo system | Yaskawa |
| X/Y max speed | 13,000 mm/min |
| Linear guide | THK |
| Z max speed | 1,000 mm/min |
| Ball screw | HIWIN |
| Z-axis travel | 300 mm std · 1,000 mm+, to order |
| Table sizes | G-Series range, to order |
| Table load capacity | 900 kg/m² · higher to order |
| Design life | 15-year design life |
§04 / Sizes
Every G-Series size, raised.

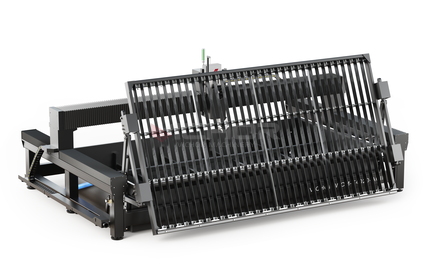

§05 / Other tables
Pick the table for the work.
Quote
Tell us your material, sheet size and thickness — we will spec the machine.
Send a drawing and a material spec. We will come back with a machine configuration, a cutting time and a price. Reply within one business day.
REQUEST A QUOTE →
