§01 / Pressure
The number that matters is the one it holds.
Continuous pressure is sustained working pressure — what the jet carries through a full shift, not a momentary peak. We publish both, side by side. That continuous figure exceeds a standard 60,000 psi pump's peak.
§02 / Inside
Four core components, five-year warranty.
Inside the intensifier, these four are US intensifier core components. They carry a 5-year warranty, beyond the 2-year machine warranty.
Piston rod
UHP cylinder
End nut
Piston
§03 / Specifications

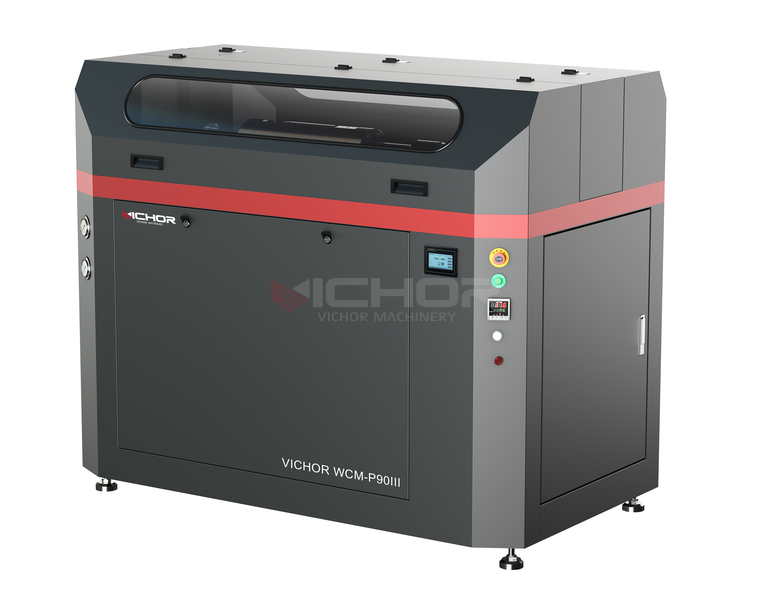

WCM-P90III, in full.
| Max pressure | 87,000 psi · 600 MPa |
|---|---|
| Continuous pressure | 540–560 MPa |
| Rated power | 55 kW |
| Key advantage | Highest-pressure tier — recommended for carbon steel over 150 mm |
| Intensifier core | US intensifier core components · 5-year warranty |
| Main motor | Innomotics |
| PLC control | Siemens |
| Hydraulics | Yuken |
| Machine warranty | 2 years · 24 months or 4,000 hours · UHP consumables excluded |
| Design life | 15-year design life |
* Power ratings are nameplate maximums; servo models draw less at typical duty.
§04 / Pump family
Four pumps, 430 to 600 MPa.
4TH GEN · BEST SELLER
WCM-P60IV
30% increase in cutting efficiency vs WCM-P60III
380–400 MPa continuous
37 kW
4TH GEN · STANDBY REDUNDANCY
WCM-P60IVB
Standby intensifier — no maintenance downtime
380–400 MPa continuous
37 kW
4TH GEN SERVO · MOST EFFICIENT
WCM-S60IV
Tested 30–50% lower energy use at equal power
380–400 MPa continuous
37 kW
FLAGSHIP
WCM-P90III
Highest-pressure tier — recommended for carbon steel over 150 mm
540–560 MPa continuous
55 kW
