§01 / Pressure
The number that matters is the one it holds.
Continuous pressure is sustained working pressure — what the jet carries through a full shift, not a momentary peak. We publish both, side by side.
§02 / Inside
Switch-over takes minutes, not hours.

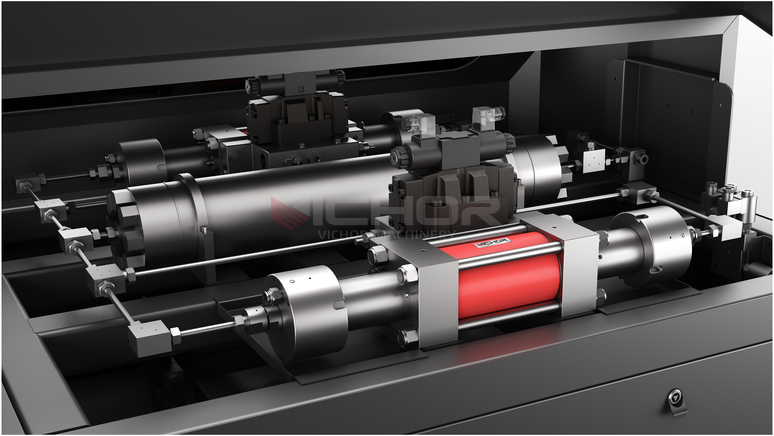

Two intensifiers, one active and one on standby, each on its own hydraulic circuit. Seals and pistons are serviced on the idle unit while the other keeps cutting.
UHP cylinder × 2
Hydraulic cylinder
Cylinder end cap × 2
End nut × 2
§03 / Specifications

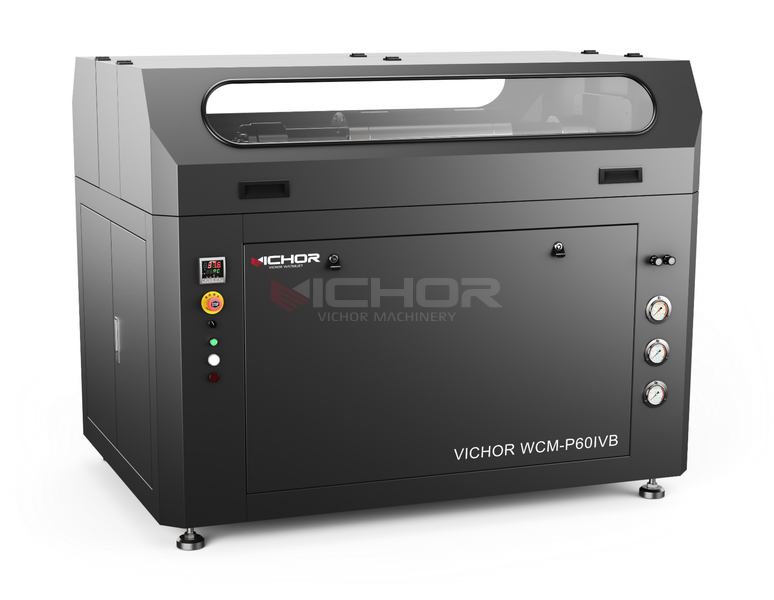

WCM-P60IVB, in full.
| Max pressure | 62,000 psi · 430 MPa |
|---|---|
| Continuous pressure | 55,000–58,000 psi · 380–400 MPa |
| Rated power | 37 kW |
| Key advantage | Standby intensifier — no maintenance downtime |
| Intensifier core | US intensifier core components · 5-year warranty |
| Main motor | Innomotics |
| PLC control | Siemens |
| Hydraulics | Bosch Rexroth |
| Machine warranty | 2 years · 24 months or 4,000 hours · UHP consumables excluded |
| Design life | 15-year design life |
* Power ratings are nameplate maximums; servo models draw less at typical duty.
§04 / Pump family
Four pumps, 430 to 600 MPa.
4TH GEN · BEST SELLER
WCM-P60IV
30% increase in cutting efficiency vs WCM-P60III
380–400 MPa continuous
37 kW
4TH GEN · STANDBY REDUNDANCY
WCM-P60IVB
Standby intensifier — no maintenance downtime
380–400 MPa continuous
37 kW
4TH GEN SERVO · MOST EFFICIENT
WCM-S60IV
Tested 30–50% lower energy use at equal power
380–400 MPa continuous
37 kW
FLAGSHIP
WCM-P90III
Highest-pressure tier — recommended for carbon steel over 150 mm
540–560 MPa continuous
55 kW
Quote
Tell us your material, sheet size and thickness — we will spec the machine.
Send a drawing and a material spec. We will come back with a machine configuration, a cutting time and a price. Reply within one business day.
