Waterjet Pump Systems
Key benefits and advantages of using VICHOR waterjet pumps
VICHOR waterjet pumps are designed to provide businesses with a cutting solution that offers precision, efficiency, and ease of use. Some key benefits and advantages of using our waterjet pumps include:
- Versatility : Our waterjet pumps can cut a wide range of materials, from soft materials like rubber and foam to hard and thick materials like steel and stone, making them suitable for various industries.
- Eco-friendly : Waterjet cutting is a cold cutting process, reducing the risk of heat-affected zones, distortion, or material damage, making it an environmentally friendly option.
- Customizable solutions : VICHOR offers a range of waterjet pumps and accessories to cater to your specific industry needs, allowing for tailored cutting solutions.
VICHOR’s commitment to quality and customer satisfaction
VICHOR provides a two-year machine warranty.
Low-cost, self-contained entry-level systems
VICHOR offers entry-level UHP pumps.
Industry-specific waterjet cutting solutions
Discuss the required accessories and configuration with VICHOR.

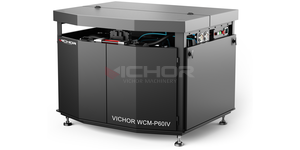

VICHOR Waterjet Pump System
WCM-P60IIIx2
VICHOR Waterjet Pump System
WCM-P60III
Standard
Professional
Premium
Maximum
Model
WCM-P55
WCM-P60II
WCM-P60III
WCM-P60IIIx2
Nominal Power Rate
50hp (37kW)
50hp (37kW)
50hp (37kW)
100hp (75kW)
Max. Pressure Range
55,000psi (3,792bar)
60,000psi (4,137bar)
60,000psi (4,137bar)
60,000psi (4,137bar)
Max. Water flow rate
0.98gpm (3.71lpm)
0.98gpm (3.71lpm)
1.0gpm (3.79lpm)
1.90gpm (7.20lpm)
Max. Single Orifice Diameter
0.013” (0.330mm)
0.013” (0.330mm)
0.014” (0.356mm)
0.018” (0.45mm)
Length
68.70” (1,745mm)
67.52” (1,715mm)
67.52” (1,715mm)
82.68” (2,100mm)
Width
41.14” (1,045mm)
40.75” (1,035mm)
40.75” (1,035mm)
50.00” (1,270mm)
Height
53.15” (1,350mm)
46.89” (1,191mm)
46.89” (1,191mm)
55.91” (1,420mm)
Weight
2,646lb (1,200kg)
2,260lb (1,025kg)
2,260lb (1,025kg)
3,748lb (1,700kg)
Importance of intensifier technology in waterjet cutting
Intensifier technology is a crucial component of waterjet cutting systems, responsible for generating the high-pressure water stream required for cutting various materials. The intensifier converts low-pressure water into a high-pressure stream by using a hydraulic piston assembly. This high-pressure water stream is then directed through a cutting nozzle, allowing for precise, accurate cuts.

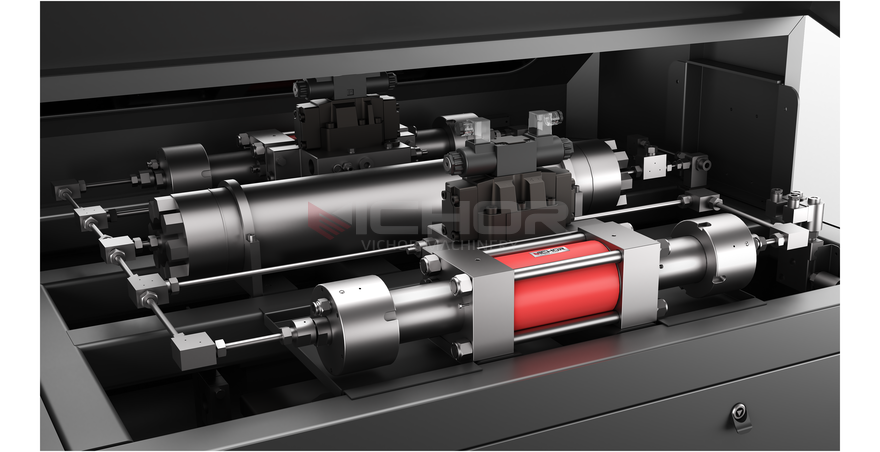

Intensifier technology
Intensifier features:
- Intensifier core components include imported parts.
Energy-efficient hydraulic variable displacement pump
A hydraulic variable displacement pump adjusts output to cutting requirements.
High-pressure attenuator
VICHOR waterjet pumps include a high-pressure attenuator.
Simplified structure for easy maintenance
The pumps provide access to components for maintenance.
High-reliability through precise electronic commutation
VICHOR waterjet pumps use electronic commutation.
Durable piston rod made of special ceramic materials
The piston rod in VICHOR waterjet pumps is made of special ceramic materials.
PLC (Programmable Logic Controller) for improved stability
VICHOR waterjet pumps use a PLC (Programmable Logic Controller) system in place of intermediate relays and time relays.
Imported parts for the core of the ultra-high-pressure intensifier
At VICHOR, we understand that the quality of a waterjet pump’s components plays a crucial role in its performance and longevity. That’s why we use imported parts for the core of our ultra-high-pressure intensifiers, ensuring that our pumps remain reliable and long-lasting.
Handcrafted high-pressure waterjet cutting pumps, components, and replacement parts
VICHOR manufactures pumps, components and replacement parts.
Industries Served by VICHOR Waterjet Cutting Machines
Aerospace and automotive
VICHOR waterjet cutting machines are used in aerospace and automotive applications.
Stone and tile
Waterjet cutting applications include stone and tile.
Metal fabrication and more
Waterjet cutting applications include metal fabrication, glass, rubber and foam.
