6 Compelling Reasons a Small Format Waterjet Might Be Your Perfect Cutting Solution
The demand for precision cutting in compact spaces is surging, driving significant interest in the small format waterjet. Often misunderstood as merely “smaller,” these machines represent a distinct category offering unique advantages for specific applications where traditional industrial waterjets are overkill. If you’re exploring the potential of a small format waterjet, understanding its capabilities and ideal use cases is crucial. This guide dives deep into six key aspects defining these versatile machines.

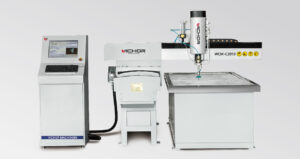

1. Defining the “Small Format Waterjet”: Size, Scope, and Capability
What exactly constitutes a small format waterjet? It’s more than just physical dimensions. Key characteristics include:
Compact Footprint: Significantly smaller than industrial counterparts, often fitting into spaces as tight as a standard office room or small workshop bay (e.g., 6ft x 8ft or less for the machine base). This is a primary driver for choosing a small format waterjet.
Reduced Cutting Envelope: Typically featuring X-Y cutting areas ranging from as small as 12″ x 12″ up to around 4ft x 4ft (e.g., 24″ x 24″, 36″ x 36″, 48″ x 48″ are common). Designed for smaller parts or lower-volume production runs.
Integrated Design: Frequently incorporate the high-pressure pump, control system, cutting table, and sometimes even basic water management into a single, self-contained unit. Simplifies installation and reduces overall system footprint.
Targeted Power: Often utilize pumps in the 30HP to 50HP range, generating pressures around 55,000 PSI to 60,000 PSI. Sufficient for cutting a wide range of materials at thicknesses relevant to small-part manufacturing, but generally not intended for cutting 4-inch thick steel plate daily.
Focus on Precision & Ease of Use: Prioritize accuracy, repeatability, and user-friendly operation, often leveraging sophisticated software optimized for smaller work areas and intricate details.
A small format waterjet isn’t just a shrunken industrial machine; it’s engineered for efficiency and accessibility within space-constrained environments.
2. Unleashing Versatility: Materials and Applications Ideal for Small Format
Don’t let the size fool you. A small format waterjet inherits the core strength of waterjet technology: the ability to cut virtually any material without heat-affected zones (HAZ) or mechanical stress. This makes them perfect for:
Prototyping & R&D: Quickly iterate designs across diverse materials (metals, plastics, composites, foams) without tooling changes. Ideal for engineers and product developers.
Electronics & Microfabrication: Precisely cut circuit boards (PCBs), insulators, thin shims, delicate sensors, and specialized components from materials like FR4, polyimide (Kapton), thin copper, and aluminum. The cold process prevents damage.
Medical Device Manufacturing: Cut intricate parts from biocompatible metals (titanium, stainless steel), specialized plastics (PEEK, UHMWPE), and ceramics for implants, surgical tools, and diagnostic equipment. The HAZ-free cut ensures material integrity.
Aerospace Components: Fabricate small brackets, spacers, washers, and non-structural components from aluminum alloys, titanium, and composites. Excellent for MRO (Maintenance, Repair, and Overhaul) shops.
Jewelry & Artistic Work: Cut intricate designs from precious metals (gold, silver, platinum), exotic stones, acrylics, and woods with exceptional detail and smooth edges.
Gaskets, Seals & Insulation: Cut complex shapes from rubber, cork, felt, foam, and composite sheet materials cleanly and efficiently.
Education & Training: Provide hands-on experience with advanced manufacturing technology in universities, technical colleges, and vocational schools without requiring massive industrial space.
The small format waterjet excels where material diversity, precision, and cold cutting are paramount, and part size fits within its work envelope.
3. Space Savior & Installation Simplicity: The Compact Advantage
This is often the primary reason businesses choose a small format waterjet:
Minimal Floor Space: Requires only a fraction of the space needed for a full-size industrial waterjet. Fits comfortably in environments like:
Machine shops with limited floor space
Laboratories and clean rooms
University engineering departments
Job shops specializing in small parts
R&D facilities
Architectural model makers
Artist studios
Simplified Infrastructure: Integrated designs significantly reduce installation complexity:
Lower Power Requirements: Often run on standard high-current single-phase (e.g., 240V 50-100A) or smaller 3-phase supplies, avoiding the need for massive electrical upgrades common with large 80HP+ pumps.
Easier Water Management: Smaller catch tanks or integrated closed-loop filtration systems are common, minimizing plumbing complexity and water consumption compared to open industrial systems draining to sewer.
Reduced Facility Load: Lower weight and footprint mean less demanding floor load requirements.
Quick Deployment: Faster installation and commissioning compared to large industrial systems, getting you productive sooner.
For businesses where real estate is expensive or simply unavailable for a large machine, the small format waterjet provides a viable, powerful alternative.
4. Precision Engineering: Accuracy and Software in Compact Systems
Precision is non-negotiable for small parts. Modern small format waterjet systems are engineered for high accuracy:
High-Quality Motion Systems: Utilize precision linear guides (often miniature or standard industrial-grade rails/bearings) and ballscrews driven by servo motors, ensuring smooth, accurate movement essential for intricate contours and tight tolerances (± 0.001″ – ± 0.005″ repeatability is achievable on quality machines).
Rigid Construction: Despite their size, frames are designed for stability using robust materials like stress-relieved steel or aluminum extrusions to minimize vibration and deflection during cutting.
Advanced Control Systems: Employ powerful, often PC-based CNC controllers optimized for high-speed data processing and smooth motion control. Touchscreen interfaces are common.
Sophisticated CAD/CAM Software: This is critical. Software is tailored for the small format waterjet:
Intuitive Design & Nesting: Easy import of DXF, DWG, STEP, etc. Efficient nesting algorithms maximize material yield on smaller sheets.
Path Optimization: Smart toolpath generation for speed and accuracy on fine features.
Taper Compensation: Advanced software can dynamically adjust the cutting head angle (if equipped) or compensate in the toolpath to minimize taper on thicker cuts, crucial for precision fits.
Simulation: Visualize the cutting process to prevent collisions and errors.
Ease of Use: Designed for quick learning curves, often suitable for operators without extensive CNC programming backgrounds.
The combination of mechanical precision and intelligent software ensures a small format waterjet delivers results suitable for demanding applications.
5. Understanding the Investment: Cost Factors for Small Format Waterjets
The small format waterjet cost profile differs significantly from industrial machines, offering a more accessible entry point but with specific value considerations:
Lower Initial Purchase Price: Generally range from $60,000 to $180,000+, depending on features, brand, pump power, and table size. This is substantially lower than full-size industrial systems ($150,000 – $600,000+).
Key Cost Drivers:
Pump Type & HP: Integrated direct-drive pumps (common for simplicity/compactness) vs. smaller intensifiers. 30HP, 40HP, 50HP options affect price and capability.
Cutting Envelope Size: Larger tables within the “small format” range (e.g., 4x4ft) cost more than micro tables (e.g., 12x12in).
Motion System Quality: Higher precision components increase cost but enhance accuracy and longevity.
Software Capabilities: Advanced software suites with features like true 3D cutting or sophisticated nesting add value and cost.
Brand & Origin: Established industrial brands offering small format machines command a premium over newer entrants or value-focused manufacturers. Consider support implications.
Automation Features: Options like simple nozzle changers or vision systems add cost but boost productivity.
Reduced Ancillary Costs:
Installation: Simpler and cheaper due to size and integration.
Utilities: Lower electrical installation costs; smaller water systems reduce filtration/tank expenses.
Facility Mods: Minimal to no floor reinforcement typically needed.
Operating Costs (OPEX):
Abrasive: Consumption is lower due to typically smaller parts and thinner materials cut, but garnet cost per pound remains the same. Still a significant ongoing cost.
Consumables: Orifices (sapphire/diamond), focusing tubes (carbide), seals. Costs are similar per item to larger machines, but usage rates might be lower depending on hours.
Electricity: Lower HP pumps consume less power than 80HP+ industrial pumps.
Water: Integrated closed-loop systems drastically reduce water consumption and sewer fees compared to open industrial systems.
Value Proposition: The investment isn’t just about the sticker price. Calculate ROI based on:
Bringing prototyping or specialized small-part production in-house vs. outsourcing.
Reduced lead times and increased design flexibility.
Space savings in expensive facilities.
Versatility eliminating the need for multiple dedicated cutting machines.
6. Automation, Integration, and Future-Proofing
Even small format waterjet systems offer pathways to increased productivity:
Basic Automation:
Automatic Nozzle Changers (ANC): Available on higher-end small format models, allowing switching between piercing and cutting nozzles automatically, optimizing performance for different materials/thicknesses without operator pause.
Precision Abrasive Metering: Ensures consistent abrasive feed for uniform cut quality, often integrated.
Pierce Detection: Automatically detects failed pierces and re-attempts, preventing damage during unattended operation (valuable for lights-out potential).
Material Handling: While full pallet changers are rare due to size constraints, some systems offer:
Indexing Pin Systems: For precise positioning of pre-cut blanks or fixtures.
Small-Scale Conveyors: For moving cut parts out of the tank.
Software Integration: Seamless workflow from CAD to CAM to machine control is essential. Look for software that supports automation features and provides production monitoring data.
Vision Systems: Becoming more common, allowing for automatic alignment of parts or fiducial marks on pre-printed materials, drastically reducing setup time.
Future-Proofing: Consider the software’s upgrade path and the machine’s capacity to add automation features later. Choosing a platform with a robust ecosystem ensures longevity.
Is a Small Format Waterjet Right For You?
The small format waterjet isn’t a replacement for an industrial powerhouse cutting massive steel plates all day. Instead, it’s a specialized tool offering remarkable capabilities within a compact, accessible package. Its strengths lie in:
Space Efficiency: Fitting where larger machines cannot.
Material Versatility: Cutting almost anything cold.
High Precision: Achieving tight tolerances on intricate small parts.
Reduced Entry Cost: Lower initial investment and simplified installation.
Operational Efficiency: Lower utility demands and integrated systems.
Ideal for Niche Applications: Prototyping, electronics, medical devices, jewelry, education, and specialized low-volume manufacturing.
Evaluate your primary part sizes, material types, required throughput, precision needs, and available space. If your work involves diverse materials, intricate designs, and parts fitting within a roughly 4ft x 4ft envelope, and space or budget constraints rule out a large industrial system, a small format waterjet could be the transformative solution you need to enhance your capabilities and unlock new opportunities. Research brands, request demonstrations cutting your specific materials, and analyze the true Total Cost of Ownership (TCO) to make an informed decision. The era of accessible, precision waterjetting has arrived in a compact form.
