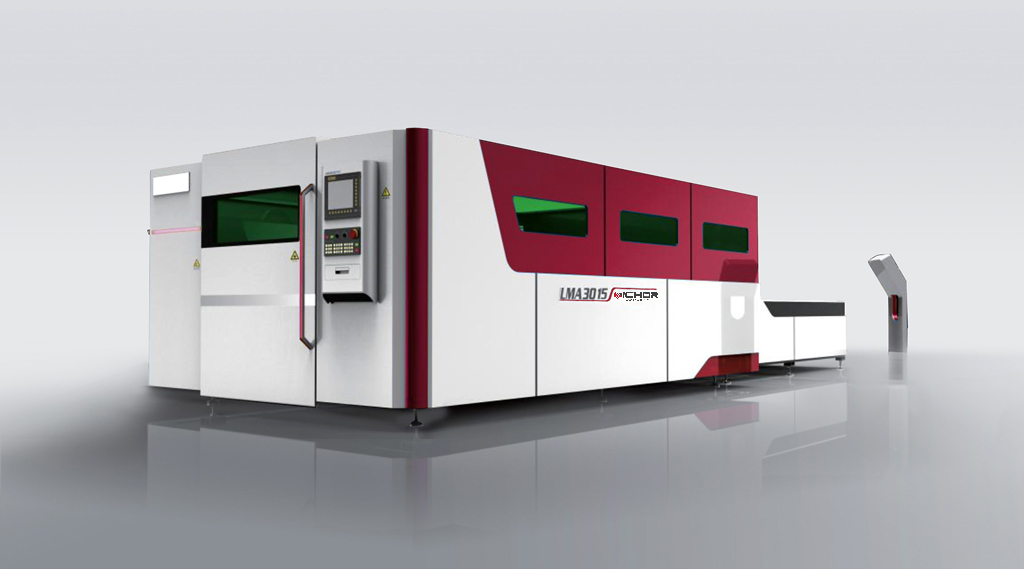

LMA SERIES Features
1 Double drive, stable and reliable movement;
2 Lift type interchangeable double tables , fast exchange speed , convenient feeding, high efficiency;
3 Full sheet metal protection, safe operation environment;
4 Independent R & D and manufacturing machine body, special processing technology, high precision, stable and reliable, long service life;
5 Cast aluminum beam, light weight, rapid response, excellent dynamic performance;
6 Precision gear rack drive with high precision reducer, high response and high precision servo motor;
7 World-class quality fiber laser, long history of industrial applications, long service life, maintenance free, stable and reliable;
8 High precision laser cutting head, imported optical lens, fine focusing, easy to adjust and perfect;
9 In response to the double closed loop control high capacitance, low requirement on the plate, stable and reliable cutting quality;
10 Closed loop CNC control system, fast response, high speed, good accuracy;
11 CNC system operation is easy to operate, low requirements on the operators;
12 Cutting graphics input multiple formats, powerful drawing and editing graphics capabilities;
13 Special cutting software, cutting process experts, data save call function;
14 Proportional valve to control gas flow, air flow stability, cutting surface quality;
15 Automatic lubrication system, smooth body running, long service life;
16 Craft dust expert, boat-style exhaust gas system design, better effect.
Technical Parameters
| Item | Technical Parameters | |||
| Type | VLMA3015 | VLMA4020 | VLMA6020 | |
| Max Cutting Size(mm) | 3000×1500 | 3000×2000 | 6000×2000 | |
| Max Height of the Workpiece(mm) | 110 | 110 | 110 | |
| Effective Trravel | X-axis(mm) | 3100 | 4100 | 6100 |
| Y-axis(mm) | 1600 | 2100 | 2100 | |
| Z-axis(mm) | 150 | 150 | 150 | |
| Positioning Accuracy | X-axis(mm/m) | ±0.03 | ±0.04 | ±0.05 |
| Y-axis(mm/m) | ±0.03 | ±0.04 | ±0.05 | |
| Z-axis(mm/m) | ±0.01 | ±0.01 | ±0.01 | |
| Repeat Positioning Accuracy | X-axis(mm) | ±0.02 | ±0.02 | ±0.03 |
| Y-axis(mm) | ±0.02 | ±0.02 | ±0.03 | |
| Z-axis(mm) | ±0.005 | ±0.005 | ±0.005 | |
| Repeat Positioning Speed | X-axis(m/min) | 120 | 120 | 120 |
| Y-axis(m/min) | 120 | 120 | 120 | |
| Z-axis(m/min) | 30 | 30 | 30 | |
| Accelerated Speed | X-axis(G) | 1.3 | 1.3 | 1.3 |
| Y-axis(G) | 1.3 | 1.3 | 1.3 | |
| Working Platform Loading Weight(Kg) | 1200 | 1800 | 2400 | |
| Working Platform Raising Time(S) | 15 | 15 | 15 | |
| Working Platform to Exchange time((S) | 20 | 22 | 25 | |
| The Laser Power(W) | 500/800/1000/1500/2000/3000/4000 | |||
| The Power Consumption of the Machine Tool(Kwh) | 9.45 | 10.25 | 10.25 | |
| Total Weight(T) | 9.65 | 11.3 | 13.8 | |
| Boundary Dimension L×W×H(mm) | 7861×3225×2130 | 12150×3225×2130 | 15260×3225×2130 | |
